Home > Products > Axle Assemblies > Solid Beam Axles

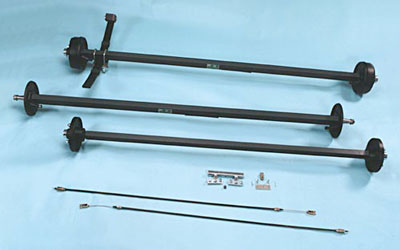

Solid beam axles are very robust and will withstand use in arduous conditions. They can be braked or unbraked and sprung or unsprung. They are used in a wide range of applications from slow moving works trolleys to heavy duty military trailers.

They are manufactured in one piece from solid square section bar with a size of beam from 38mm to 60mm depending on the carrying capacity and speed of use. Each end is machined as a stub on specially adapted CNC turning machines to suit the hub and/or brake assembly specified by the customer.

A cranked version is available where the stub axles are made separately and welded onto posts attached to each end of the axle beam. The posts are in three sizes, 75, 100 and 125mm. A drop beam axle allows the trailer to be built low to the ground which is an advantage in some applications. It is also Possible to order straight stubs, which are made from square bar with a free bed length of your choice.

These axles can be used as single units, in tandem or close coupled (two springs linked with a centre balance beam). The axles can be supplied with or without hubs. The hubs can be unbraked or braked using standard, auto-reverse or hydraulic/mechanical brakes.

Standard Solid Beam Axle Capacities

Product CodeTypeCapacityBeam SizeStuds
SA38U440Unbraked hubs - 4 stud 4 PCD750kg38mm3/8"
SA38B160A440159 x 35 A/R brakes - 4 stud 4 PCD750kg38mm3/8"
SA38U4558 unbraked hubs - 4 stud 5½ PCD1000kg38mmM12
SA38B203A45510203.2 x 40 A/R brakes - 4 stud 5½ PCD to suit 10" wheel rim1000kg38mmM12
SA38B203A410203.2 x 40 A/R brakes - 4 stud 100mm PCD1000kg38mmM12
SA38B203A455203.2 x 40 A/R brakes - 4 stud 5½ PCD1000kg38mmM12
SA45U4558 unbraked hubs - 4 stud 5½ PCD1500kg45mmM12
SA45U5658 unbraked hubs - 5 stud 6½ PCD1500kg45mmM16
SA45B203A45510203.2 x 40 A/R brakes - 4 stud 5½ PCD to suit 10" wheel rim1300kg45mmM12
SA45B203A410203.2 x 40 A/R brakes - 4 stud 100mm PCD1300kg45mmM12
SA45B203A455203.2 x 40 A/R brakes - 4 stud 5½ PCD1300kg45mmM12
SA45B203A560203.2 x 40 A/R brakes - 5 stud 6 PCD1300kg45mmM12
SA45B203A5112203.2 x 40 A/R brakes - 5 stud 112mm PCD1300kg45mmM12
SA45B203A565203.2 x 40 A/R brakes - 5 stud 6½ PCD1300kg45mmM16
SA45B200A455199 x 50 A/R brakes - 4 stud 5½ PCD1500kg45mmM12
SA45B200A560199 x 50 A/R brakes - 5 stud 6 PCD1500kg45mmM12
SA45B200A5112199 x 50 A/R brakes - 5 stud 112mm PCD1500kg45mmM12
SA45B200A5140199 x 50 A/R brakes - 5 stud 140mm PCD to suit 12" wheel rim1500kg45mmM16
SA45B200A565/56513199 x 50 A/R brakes - 5 stud 6½ PCD to suit 13" wheel rim1500kg45mmM16
SA50U56010 unbraked hubs - 5 stud 6 PCD2060kg50mmM12
SA50U56510 unbraked hubs - 5 stud 6½ PCD2060kg50mmM16
SA50B250A560249 x 40 A/R brakes - 5 stud 6 PCD1900kg50mmM12
SA50B250A5140249 x 40 A/R brakes - 5 stud 140mm PCD1900kg50mmM16
SA50B250A565/56513249 x 40 A/R brakes - 5 stud 6½ PCD to suit 13" wheel rim1900kg50mmM16
SA60U514010 unbraked hubs - 5 stud 140mm PCD to suit 12" wheel rim3000kg60mmM16
SA60U56510 unbraked hubs - 5 stud 6½ PCD3000kg60mmM16
SA60B300S565299 x 60 std brakes - 5 stud 6½ PCD3000kg60mmM16
SA60B300S620299 x 60 std brakes - 6 stud 205mm PCD3000kg60mmM18
SA60B300A565299 x 60 A/R brakes - 5 stud 6½ PCD3000kg60mmM16
