Home > Products > Axle Assemblies > Rubber Insert Suspension Axles

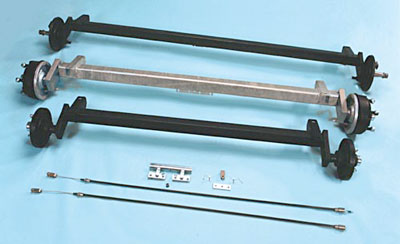

A simple but extremely robust, easy to fit and highly effective assembly based on high density rubber inserts which progressively compress as load increases giving a long and maintenance free working life.

In comparison with independent suspension units, full track axles can form part of the structure of a chassis and the stub axles are aligned with each other during production (tracked) allowing for very quick installation. Our rubber insert suspension axles provide great value for money being a well designed and engineered customer driven product.

A galvanised finish is available upon request, which is in accordance with the new European Standard BS EN ISO 1461.

Variations

Our rubber suspension axle systems can be supplied with/without stub and hub (hub can be braked/unbraked using standard, auto-reverse, hydraulic or mechanical brakes).

Standard Rubber Insert Suspension Axle Capacities

Product CodeTypeCapacityStuds
RA5U440Unbraked hubs - 4 stud 4 PCD500kg3/8"
RA5U410Unbraked hubs - 4 stud 100mm PCD500kgM12
RA5B160A440160 x 35 A/R brakes - 4 stud 4 PCD500kg3/8"
RA5B160A410160 x 35 A/R brakes - 4 stud 100mm PCD500kgM12
RA6U440Unbraked hubs - 4 stud 4 PCD600kg3/8"
RA6U410Unbraked hubs - 4 stud 100mm PCD600kgM12
RA6U455Unbraked hubs - 4 stud 5½ PCD600kgM12
RA6B160A440160 x 35 A/R brakes - 4 stud 4 PCD600kg3/8"
RA6B160A410160 x 35 A/R brakes - 4 stud 100mm PCD600kgM12
RA6B203A455203.2 x 40 A/R brakes - 4 stud 5½ PCD600kgM12
RA7U440Unbraked hubs - 4 stud 4 PCD750kg3/8"
RA7U410Unbraked hubs - 4 stud 100mm PCD750kgM12
RA7U455Unbraked hubs - 4 stud 5½ PCD750kgM12
RA7B160A440160 x 35 A/R brakes - 4 stud 4 PCD750kg3/8"
RA7B160A410160 x 35 A/R brakes - 4 stud 100mm PCD750kgM12
RA7B203A45510203.2 x 40 A/R brakes - 4 stud 5½ PCD to suit 10" wheel rim750kgM12
RA7B203A410203.2 x 40 A/R brakes - 4 stud 100mm PCD750kgM12
RA7B203A455203.2 x 40 A/R brakes - 4 stud 5½ PCD750kgM12
RA10B160A440160 x 35 AR brakes - 4 stud 4 PCD900kg3/8"
RA10B160A410160 x 35 A/R brakes - 4 stud 100mm PCD900kgM12
RA10U455Unbraked hubs - 4 stud 5½ PCD1000kgM12
RA10B203A45510203.2 x 40 A/R brakes - 4 stud 5½ PCD to suit 10" wheel rim1000kgM12
RA10B203A410203.2 x 40 A/R brakes - 4 stud 100mm PCD1000kgM12
RA10B203A455203.2 x 40 A/R brakes - 4 stud 5½ PCD1000kgM12
RA10B203A565203.2 x 40 A/R brakes - 5 stud 6½ PCD1000kgM16
RA13U410Unbraked hubs - 4 stud 100mm PCD1300kgM12
RA13U455Unbraked hubs - 4 stud 5½ PCD1300kgM12
RA13U560Unbraked hubs - 5 stud 6 PCD1300kgM12
RA13U565Unbraked hubs - 5 stud 6½ PCD1300kgM16
RA13B203A410203.2 x 40 A/R brakes - 4 stud 100mm PCD1300kgM12
RA13B203A455203.2 x 40 A/R brakes - 4 stud 5½ PCD1300kgM12
RA13B203A560203.2 x 40 A/R brakes - 5 stud 6 PCD1300kgM12
RA13B203A5112203.2 x 40 A/R brakes - 5 stud 112mm PCD1300kgM12
RA13B203A5140203.2 x 40 A/R brakes - 5 stud 140mm PCD to suit 12" wheel rim1300kgM16
RA13B203A565203.2 x 40 A/R brakes - 5 stud 6½ PCD1300kgM16
RA15U560Unbraked hubs - 5 stud 6 PCD1500kgM12
RA15U5140Unbraked hubs - 5 stud 140mm PCD1500kgM16
RA15U565Unbraked hubs - 5 stud 6½ PCD1500kgM16
RA15B200A455200 x 50 A/R brakes - 4 stud 5½ PCD1500kgM12
RA15B200A560200 x 50 A/R brakes - 5 stud 6 PCD1500kgM12
RA15B200A5112200 x 50 A/R brakes - 5 stud 112mm PCD1500kgM12
RA15B200A5140200 x 50 A/R - 5 stud 140mm PCD to suit 12" wheel rim1500kgM16
RA15B200A565/56513200 x 50 A/R brakes - 5 stud 6½ PCD to suit 13" wheel rim1500kgM16
RA18U5140Unbraked hubs - 5 stud 140mm PCD to suit 12" wheel rim1800kgM16
RA18U565/56513Unbraked hubs - 5 stud 6½ PCD to suit 13" wheel rim1800kgM16
RA18B250A560250 x 40 A/R brakes - 5 stud 6 PCD1800kgM12
RA18B250A5140250 x 40 A/R brakes - 5 stud 140mm PCD to suit 12" wheel rim1800kgM16
RA18B250A565/56513250 x 40 A/R brakes - 5 stud 6½ PCD to suit 13" wheel rim1800kgM16
