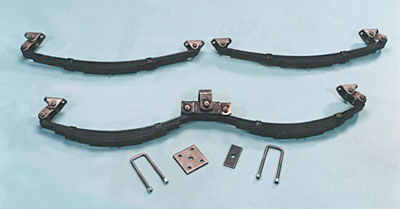

Leaf springs used with solid beam axles are a traditional and widely used form of suspension. They are very strong and will withstand use in arduous conditions. If a leaf in the spring does fracture it can easily be repaired or the spring replaced. They are all 2” wide and have bushes in the eyes at both ends which are greased once assembled with shackle pins. They are available in a range of capacities and lengths for use with one or two axles and come complete with the shackle equipment necessary to attach them to a chassis and axle.

If the springs are being used for a twin axle application they can be used either in tandem or close coupled:

  • Tandem fitting - Both pairs of springs are attached to the chassis without being linked to each other.
  • Close coupled - The two spring eyes nearest the middle are joined through a centre balance beam. If this arrangement is used the width between the axles is governed by the spring length. Please consult the technical data sheet below for more information.

To give reasonable clearance between wheels we recommend the following maximum wheel/tyre sizes for the length of spring shown:

Leaf lengthWheels and Tyres
20"10"/12"
24"13"/14"
30"16"

Note: Table applies to close coupled configurations only.

If ordering spring assemblies without axles, can you please specify the axle beam cross-section to ensure the correct U-bolt size is supplied.

Standard Double Eye Spring Capacities

Product CodeType / Dimensions(in)Capacity
DES1100Axle Set - 2" x 1/4" x 20" - 4 leaves1100kg
DES1400Axle Set - 2" x 9/32" x 20" - 4 leaves1400kg
DES1700Axle Set - 2" x 5/16" x 20" - 4 leaves1700kg
DES1950Axle Set - 2" x 5/16" x 20" - 5 leaves1950kg
DES700Axle Set - 2" x 1/4" x 24" - 3 leaves700kg
DES1350Axle Set - 2" x 1/4" x 24" - 7 leaves1350kg
DES1900Axle Set - 2" x 5/16" x 24" - 5 leaves1900kg
DES2250Axle Set - 2" x 5/16" x 24" - 6 leaves2250kg
DES900Axle Set - 2" x 5/16" x 30" - 3 leaves900kg
DES1450Axle Set - 2" x 11/32" x 30" - 4 leaves1450kg
DES1800Axle Set - 2" x 11/32" x 30" - 5 leaves1800kg
DES2500Axle Set - 2" x 11/32" x 30" - 7 leaves2500kg
DES2900Axle Set - 2" x 11/32" x 30" - 8 leaves2900kg
DET2200Close-coupled Tandem Set - 2" x 1/4" x 20" - 4 leaves2200kg
DET2800Close-coupled Tandem Set - 2" x 9/32" x 20" - 4 leaves2800kg
DET3400Close-coupled Tandem Set - 2" x 5/16" x 20" - 4 leaves3400kg
DET3900Close-coupled Tandem Set - 2" x 5/16" x 20" - 5 leaves3900kg
DET1400Close-coupled Tandem Set - 2" x 1/4" x 24" - 3 leaves1400kg
DET2700Close-coupled Tandem Set - 2" x 1/4" x 24" - 7 leaves2700kg
DET3800Close-coupled Tandem Set - 2" x 5/16" x 24" - 5 leaves3800kg
DET4500Close-coupled Tandem Set - 2" x 5/16" x 24" - 6 leaves4500kg
DET1800Close-coupled Tandem Set - 2" x 5/16" x 30" - 3 leaves1800kg
DET2900Close-coupled Tandem Set - 2" x 11/32" x 30" - 4 leaves2900kg
DET3600Close-coupled Tandem Set - 2" x 11/32" x 30" - 5 leaves3600kg
DET5000Close-coupled Tandem Set - 2" x 11/32" x 30" - 7 leaves5000kg
DET5800Close-coupled Tandem Set - 2" x 11/32" x 30" - 8 leaves5800kg
CBBKECentre Balance Beam Parts - Double Eye
